Mupeak Brake Caliper Technical Specs

Mupeak currently offers three series of brake calipers, RP (Racing Performance); SP (Sprint Performance); SPE(Sprint Performance E-Park).

Details are as follows:

RP (Racing Performance)

The Mupeak RP Series is perfect for drivers who prioritize track performance, time attack, or club racing, while still offering the flexibility for occasional street use. These calipers are specifically engineered for track-focused performance, featuring enhanced heat capacity and cooling efficiency, along with increased rigidity to withstand the demands of endurance racing and intense track conditions.

SP (Sprint Performance)

The Mupeak SP Series is designed not only to deliver an impressive big brake aesthetic but also to handle high-performance sprint driving on streets and twisty roads. It's also capable during occasional autocross events and track days. This series of calipers offers a low operating cost while providing the reliable braking performance needed for spirited driving.

SPE(Sprint Performance E-Park)

Nowadays, more and more cars are equipped with electronic parking brakes on the rear axle, making big brake upgrades more challenging. The Mupeak SPE calipers, based on the SP Series, are specifically designed to integrate seamlessly with OEM electronic parking brake motors. Unlike other solutions on the market that require separate brackets and extended wiring, the SPE calipers offer a simplified upgrade. SPE series primary purpose is to allow users to upgrade OEM small rear rotors and calipers while achieving a clean aesthetic and high-performance .

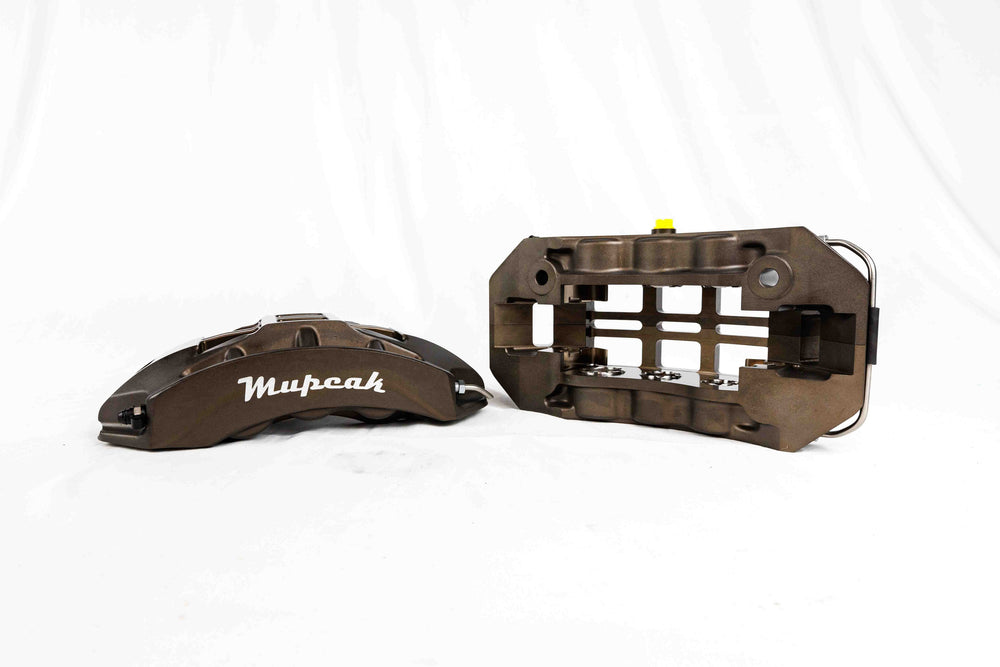

MUPEAK RP6

x

Forged 6082 Aluminum

x

Tin Coated/Heat Treated SS Piston

Specifications

Caliper code: RP6

Structure & Materials: 2 piece 6082 Fully Forged Aluminum Alloy,

Weight: 4.3KG / 9.4LBS

Brake Pad Thickness: 18mm

Piston Materials : Stainless Steel

Anti Knock Back Spring : Yes

Piston coatings : Yes / Titanium Nitride (Tin) Coated

Piston Heat Treatment: Yes

Piston Number: 6

Piston Spec : 27mm, 31,8mm, 38mm / 1.063'', 1.252'', 1.496''  (*diameter varies depends on the applications )

Pistons Surface Area :  50cm² / 7.75 Square inch

Minimum Brake Rotor Diameter : 355mm

Manufactural tech and test info

Tensile Strength:320Mpa

Caliper Housing Hardness:HV400

Low Pressure Sealing Test: The caliper passes a 0.4 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 100 Pa.

High Pressure Sealing Test: The caliper passes a 12 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 0.2 MPa.

Ultra-High Pressure Test: A sample of calipers passes a 30 MPa oil pressure test without failure or bursting.

Testing Standards:ISO 3996/ SAE J1603/ ECE R13/ QCT592

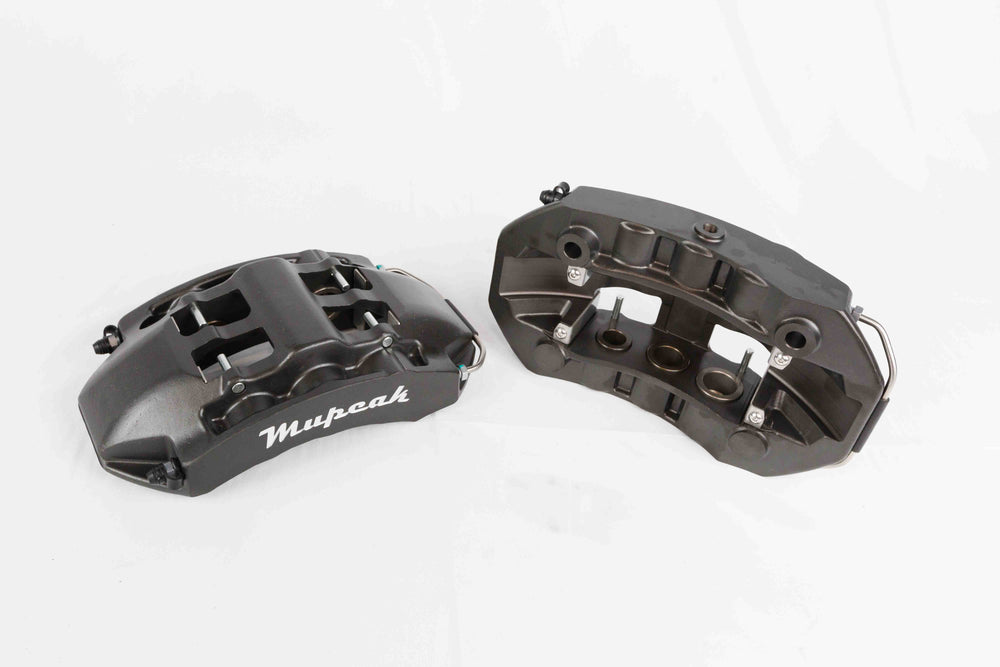

MUPEAK RP5

x

1 Piece Monoblock Forged 6061 T6 Aluminum

x

Tin Coated/Heat Treated SS Piston

Specifications

Caliper code: RP5

Structure & Materials: MONOBLOCK 6061 T6 Fully Forged Aluminum Alloy

Weight: 2.6KG / 6 LBS

Brake Pad Shape: D48

Brake Pad Thickness: 18mm

Piston Materials : Stainless Steel

Anti Knock Back Spring : Yes

Piston coatings : Yes / Titanium Nitride (Tin) Coated

Piston Heat Treatment: Yes

Piston Number: 6

Piston Spec : 27mm, 31,8mm, 34mm / 1.063'', 1.252'', 1.339''  (*diameter varies depends on the applications )

Pistons Surface Area :  46cm² / 7.13 Square inch

Minimum Brake Rotor Diameter : 332mm

Manufactural tech and test info

Tensile Strength: bN320Mpa

Caliper Housing Hardness:HV400

Low Pressure Sealing Test: The caliper passes a 0.4 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 100 Pa.

High Pressure Sealing Test: The caliper passes a 12 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 0.2 MPa.

Ultra-High Pressure Test: A sample of calipers passes a 30 MPa oil pressure test without failure or bursting.

Testing Standards:ISO 3996/ SAE J1603/ ECE R13/ QCT592

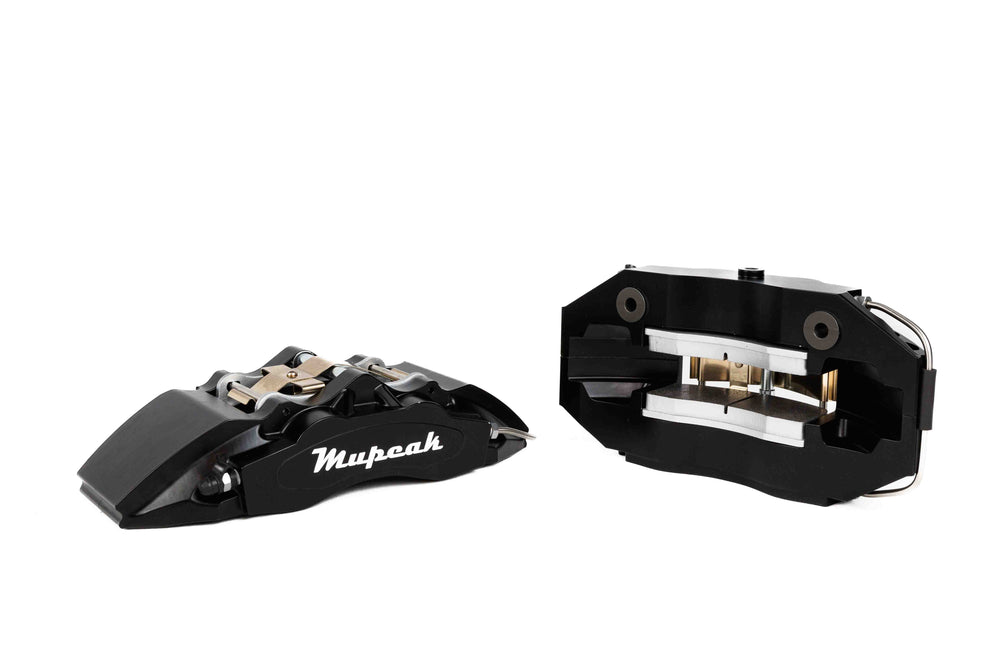

MUPEAK SP4

x

6061-T6 Fully Forged Aluminum

x

SS Piston Upgrade Option

Specifications

Caliper code: SP4

Structure & Materials: 2 piece 6061-T6 Fully Forged Aluminum Alloy,

Weight: 2.9KG / 6.3LBS

Brake Pad Thickness: 16.5mm- D48(F50)

Piston Materials : Aluminum (Can be upgraded to Stainless Steel)

Anti Knock Back Spring : No

Piston coatings : Yes

Piston Heat Treatment: Yes

Piston Number: 4

Piston Spec : 31,8mm x 4  (*diameter varies depends on the applications )

Pistons Surface Area :  45.3cm² / 7.02 Square inch

Minimum Brake Rotor Diameter : 295mm

Manufactural tech and test info

Tensile Strength: 320Mpa

Caliper Housing Hardness:HV400

Low Pressure Sealing Test: The caliper passes a 0.4 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 100 Pa.

High Pressure Sealing Test: The caliper passes a 12 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 0.2 MPa.

Ultra-High Pressure Test: A sample of calipers passes a 30 MPa oil pressure test without failure or bursting.

Testing Standards:ISO 3996/ SAE J1603/ ECE R13/ QCT592

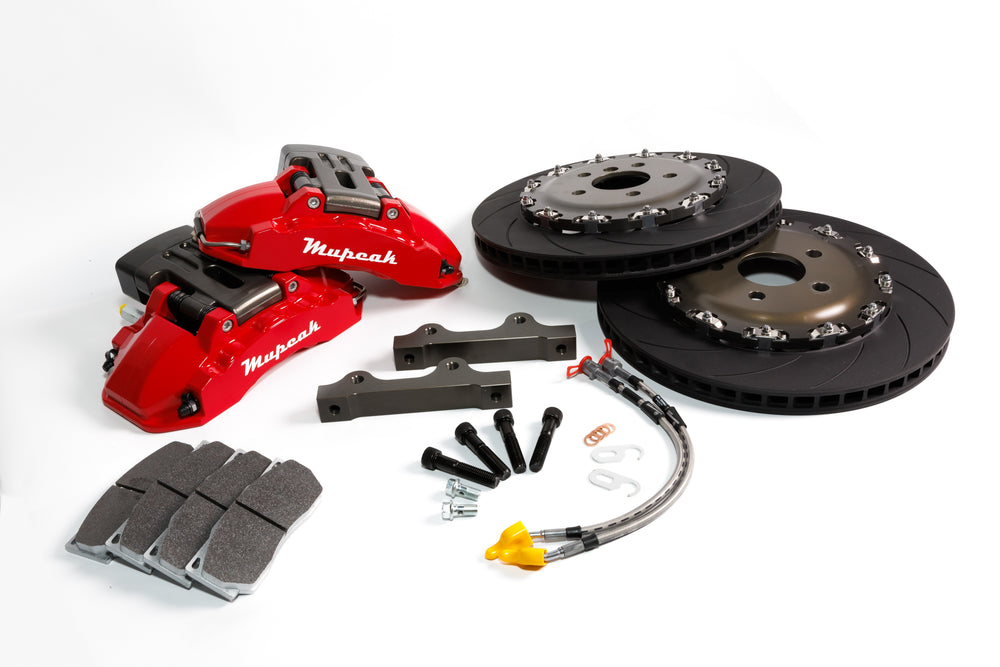

MUPEAK SPE4

x

OE Electronic Parking Brake Integration

x

Plug & Play

Specifications

Caliper code: SPE4

Structure & Materials: 2 piece 6061-T6 Fully Forged Aluminum Alloy,

Weight: 2.9KG / 6.3LBS

Brake Pad Thickness: 16.5mm- D48(F50)

Piston Materials : Aluminum (Can be upgraded to Stainless Steel)

Anti Knock Back Spring : No

Piston coatings : Yes

Piston Heat Treatment: Yes

Piston Number: 4

Piston Spec : 31,8mm x 4  (*diameter varies depends on the applications )

Pistons Surface Area :  45.3cm² / 7.02 Square inch

Minimum Brake Rotor Diameter : 295mm

Manufactural tech and test info

Tensile Strength: 320Mpa

Caliper Housing Hardness:HV400

Low Pressure Sealing Test: The caliper passes a 0.4 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 100 Pa.

High Pressure Sealing Test: The caliper passes a 12 MPa air pressure test, with a stabilization period of 5 seconds, and a pressure drop not exceeding 0.2 MPa.

Ultra-High Pressure Test: A sample of calipers passes a 30 MPa oil pressure test without failure or bursting.

Testing Standards:ISO 3996/ SAE J1603/ ECE R13/ QCT592Â
